Compatibility: FLSTF Fat Boy 1990-2017
Note: May require relocation of the handlebar mounted front turn signals.
Note: There are two options for fairing configuration: (With and without stereo)
(1) Fairing Without Stereo - Ship next business day

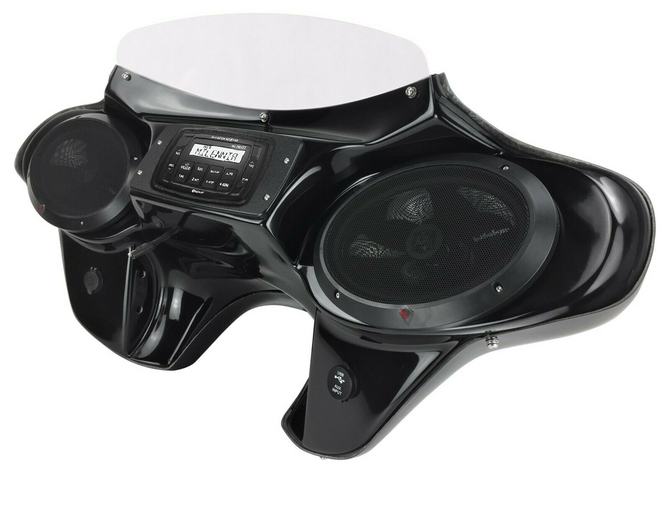

(2) Fairing with Stereo (Rockford Fosgate Speakers and TBV22 Stereo) - builds to Order. Times vary by season
Features:
*If your motorcycle does not have the OEM windshield mounts as shown in the below photo, then there are numerous aftermarket options for Harley OEM windshield grommets.
Note: Before placing your order, please measure your motorcycle to ensure that our fairings will fit your bike.

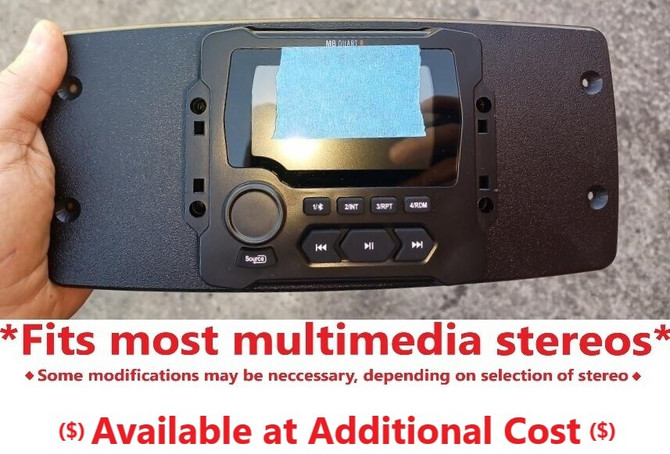

*Note: Multimedia plate add-ons are made to fit most multimedia stereos such as Rockford Fosgate PMX and Infinity PRV. We provide 2 different plates. Depending on the head unit you purchase some modifications may be required. The plate measurements are within the gallery of photos (see image 5).

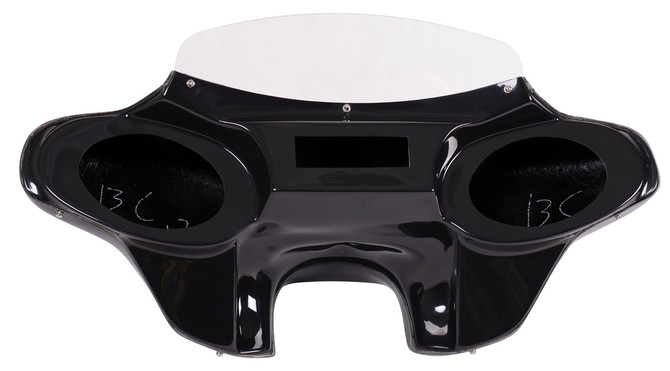

Smooth Front Speaker Opening Dimensions:
2 - 6"x9" Speaker Model:
8 1/2’’ L x 5 3/4’’ H; 3’’ Deep
4 - 5 14" Speaker Model:
4 5/8" Diameter; 2 1/4’’ Deep
Overall Dimensions (without windshield):
39 1/2’’ L x 111/2’’ W x 17” H
Windshield Height:
5 1/2’’ H
Vented Front Speaker Opening Dimensions:
Accepts digital media receiver and not a traditional single DIN head unit
2 - 6"x9" Speaker Model:
5.5’’ L x 8.25’’ H; 3 1/4’’ Deep
2 - 6.5" Speaker Model:
5" Diameter; 3 ¾’’ Deep
Overall Dimensions (without windshield):
39 1/2’’ L x 111/2’’ W x 17” H
Windshield Height:
5 1/2’’ H
Thin glass in one spot under a speaker cutout. Had to lay more glass and resin to thicken up. Pretty decent thickness everywhere else. Planning on hydro dipping so not concerned with finish but looks good enough to install. Definitely recommend repainting.
Installed on my 03 fatboy. Received in a few days & was well packaged. Not quite to factory level but for the price it is great. Wish they offered a option for chrome mounts. I would recommend.
received the fairing in a very well packaging box , did the installation in about 3 hours , the quality is outstanding , the speakers and radio are first class . the sound is unbelievable , I would give this 10 stars if I could. the fit is a little snug but that's good , looks great one very happy customer.
Put this on my 2003 fatboy Was a little snug to get on the docking station other then that I love the fairing great price would recommend
Perfect fit on my 07 fatboy. Fast delivery also better than I thought it was going to be. Super happy with the product! Still can t believe the price! So awesome!
