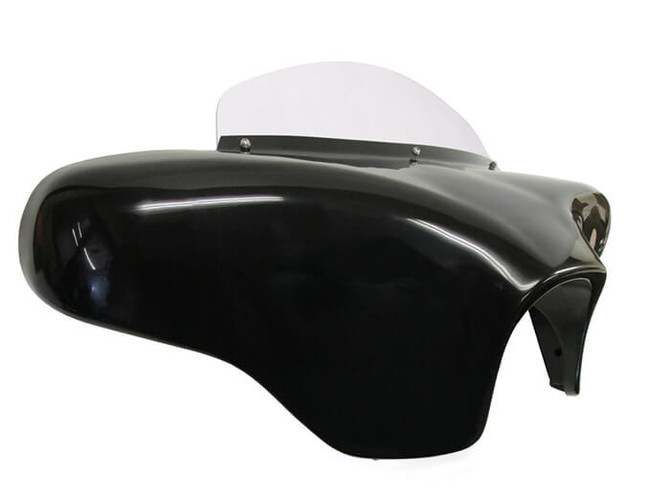

Harley Davidson Dyna Super Glide Custom Fairings - Outside Angle
Batwing Fairing Mounting Bracket Dimensions for Harley Dyna Super Glide Custom
Batwing Fairing Bracket and Speaker Opening Measurements for Super Glide Custom
Dyna Super Glide Custom Batwing Fairings Outside Angled View
Harley Davidson Dyna Super Glide Custom Batwing Fairings - Outside
Dyna Super Glide Fairing Outside View
Harley Davidson Dyna Super Glide without Speaker and windshield
Harley Super Glide Custom Batwing Fairings Back View
Fairing for Super Glide Custom Left Angled View
Super Glide Custom Batwing Fairings Back View

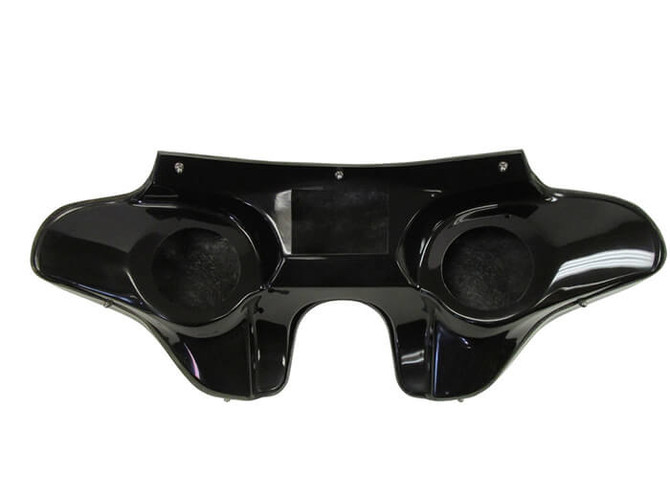

Harley Super Glide Custom Fairings
Batwing Fairing for Super Glide Custom - Front View

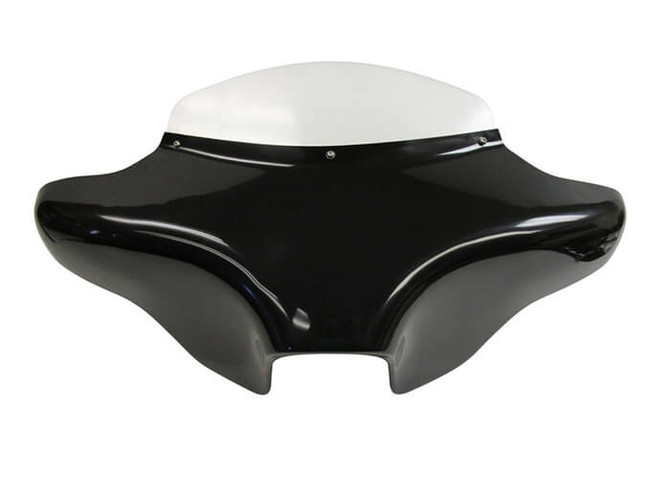

Batwing Fairing for Harley Super Glide Custom - Bracket with Windshield
Batwing Fairing for 2006-2014 Harley Dyna Super Glide Custom
Harley Davidson Dyna Super Glide Custom Fairings - Outside Angle
Batwing Fairing Mounting Bracket Dimensions for Harley Dyna Super Glide Custom
Batwing Fairing Bracket and Speaker Opening Measurements for Super Glide Custom
Dyna Super Glide Custom Batwing Fairings Outside Angled View
Harley Davidson Dyna Super Glide Custom Batwing Fairings - Outside
Dyna Super Glide Fairing Outside View
Harley Davidson Dyna Super Glide without Speaker and windshield
Harley Super Glide Custom Batwing Fairings Back View
Fairing for Super Glide Custom Left Angled View
Super Glide Custom Batwing Fairings Back View
Harley Super Glide Custom Fairings
Batwing Fairing for Super Glide Custom - Front View
Batwing Fairing for Harley Super Glide Custom - Bracket with Windshield
Batwing Fairing for 2006-2014 Harley Dyna Super Glide Custom
Harley Davidson Dyna Super Glide Custom Fairings - Outside Angle
Batwing Fairing Mounting Bracket Dimensions for Harley Dyna Super Glide Custom
Batwing Fairing Bracket and Speaker Opening Measurements for Super Glide Custom
Dyna Super Glide Custom Batwing Fairings Outside Angled View
Harley Davidson Dyna Super Glide Custom Batwing Fairings - Outside
Dyna Super Glide Fairing Outside View
Harley Davidson Dyna Super Glide without Speaker and windshield
Harley Super Glide Custom Batwing Fairings Back View
Fairing for Super Glide Custom Left Angled View
Super Glide Custom Batwing Fairings Back View
Harley Super Glide Custom Fairings
Batwing Fairing for Super Glide Custom - Front View
Batwing Fairing for Harley Super Glide Custom - Bracket with Windshield
Previous Next

Stealth

Harley Dyna Super Glide Custom Batwing Fairing

2 reviews Write a Review
Designed to fit: 2006 - 2014 Harley-Davidson Dyna Super Glide Custom There are many different models, factory upgrades, and custom aftermarket parts so some modification may be necessary.   F…
SKU: 09-1555d
UPC: 754592100241
Shipping: $59.00 (Fixed Shipping Cost)
$329.00
See Full Details Here
Product Details

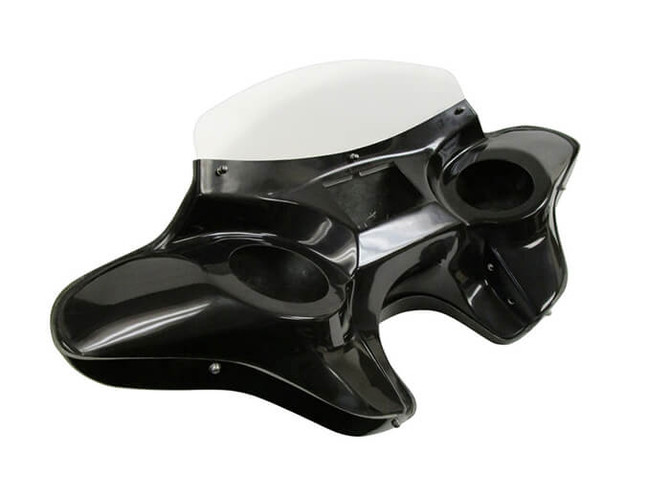

Designed to fit:

2006 - 2014 Harley-Davidson Dyna Super Glide Custom

There are many different models, factory upgrades, and custom aftermarket parts so some modification may be necessary.   Fairings come designed to accommodate 2 x 5.25" speakers but can accommodate 2 x 6.5" speakers by enlarging the existing holes.  Each fairing comes with 2 free windshields, one clear and one tinted.

Note: Relocation of the front turn signals is required.  Speedometer relocation required if located on handlebars.

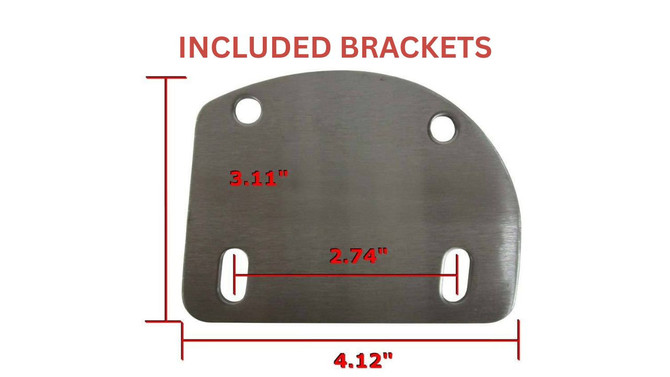

Note:  If you already have Memphis Shades for 48-55mm Clamps MEM 9954, then our fairing will mount to these. If you do not have the Memphis Shades clamps, then we offer fork clamps. Installation requires 4 pieces (2 sets) of the 48-55mm fork clamps.

Note:  This fairing is smaller than other fairings that we offer. As a result, the space to accommodate the audio receiver is smaller. This fairing has limited depth. The current cutout is 3 ½” x 5 ½” and will accommodate a receiver up to 3” deep. We recommend digital media receivers such as – TBV22 and Infinity model INFPRV250.



NOTE: Speedometer relocation required if located on handlebars.

Spec

Overall Dimensions:
35.75' W x 12.5 H x 6.5" Deep

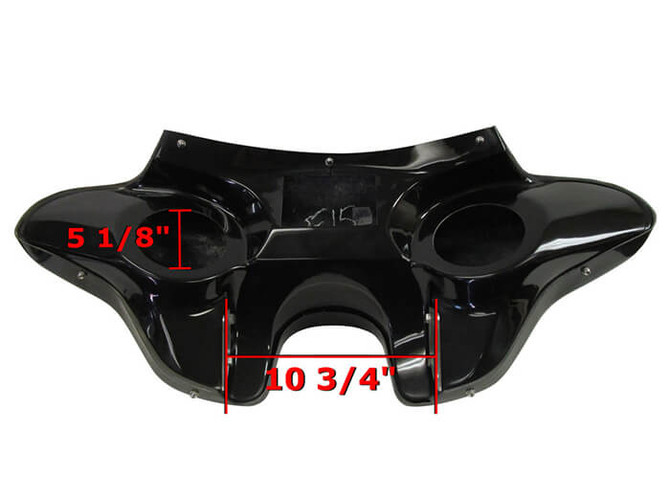

Stereo Opening Dimensions:
5 1/2" W x 3 5/8" H

Speaker Opening Dimensions:
4 5/8" Diameter; 3 ’’ Deep

Windshield Height:
5 1/2’’ H
