Stealth

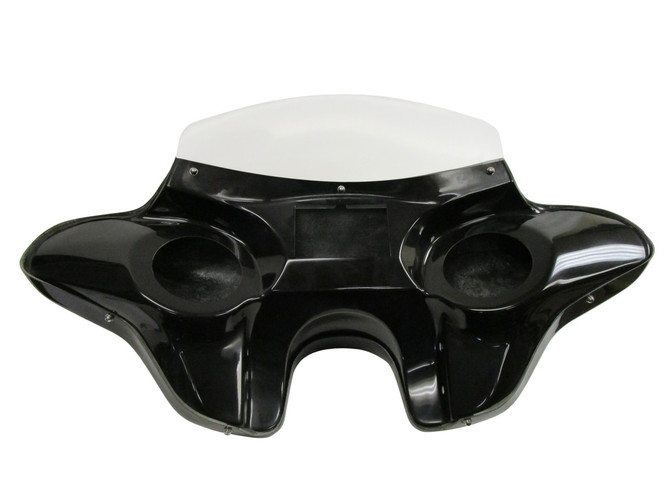

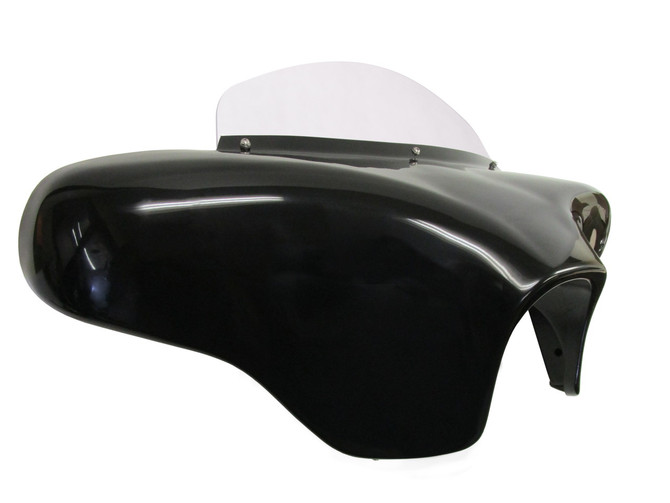

Dyna Super Glide Batwing Fairing

0 review Write a Review
Designed to fit: 1991 – 2005 Harley Dyna Super Glide There are many different models, factory upgrades, and custom aftermarket parts so some modification may be necessary.   Fairings co…
SKU: 09-1565b
UPC: 754592100227
Shipping: $59.00 (Fixed Shipping Cost)
$329.00
See Full Details Here

Designed to fit:

1991 – 2005 Harley Dyna Super Glide

There are many different models, factory upgrades, and custom aftermarket parts so some modification may be necessary.   Fairings come designed to accommodate 2 x 5.25" speakers but can accommodate 2 x 6.5" speakers by enlarging the existing holes.  Each fairing comes with 2 free windshields, one clear and one tinted.

Note:  Dyna Super Glide require relocation of the front turn signals. If mounted on top of the handlebars, then the speedometer will have to be relocated.

Note:   If you already have Memphis Shades for 35-43mm Clamps MEM 9953, then our fairing will mount to these. If you do not have the Memphis Shades clamps, then we offer fork clamps. Installation requires 4 pieces (2 sets) of the 35-43mm fork clamps.

Note:  This fairing is smaller than other fairings that we offer. As a result, the space to accommodate the audio receiver is smaller. This fairing has limited depth. The current cutout is 3 ½” x 5 ½” and will accommodate a receiver up to 3” deep. We recommend digital media receivers such as – TBV22 and Infinity model INFPRV250.



NOTE: Speedometer relocation required if located on handlebars.

Overall Dimensions:
35.75' W x 12.5 H x 6.5" Deep

Stereo Opening Dimensions:
5 1/2" W x 3 5/8" H

Speaker Opening Dimensions:
4 5/8" Diameter; 3 ’’ Deep

Windshield Height:
5 1/2’’ H
