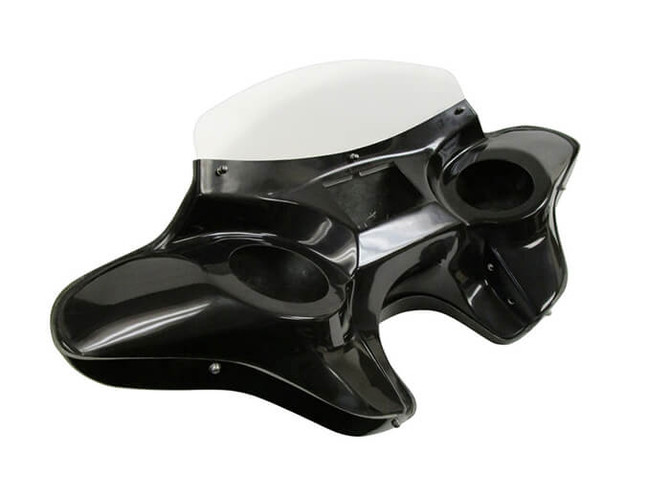

Harley Davidson Softail Standard Right angled

Harley Davidson Softail Standard mounting bracket dimensions

Harley Davidson Softail Standard Fairing bracket width and speaker opening measure

Harley Davidson Softail Standard Right angled without windshield

Harley Davidson Softail Standard back View without windshield

Harley Davidson Softail Standard Outside

Harley Davidson Softail Standard With windshield

Harley Davidson Softail Standard Left angled View

Harley Davidson Softail Standard Outside angled

Harley Davidson Softail Standard Back View

Harley Davidson Softail Standard Back angled view

Previous Next

Stealth

Harley Softail Night Train Batwing Fairing

Name: Harley Softail Night Train Batwing Fairing
Brand: Stealth
SKU: 09-1560g
Price: 329 USD
Availability: InStock

0 review Write a Review

Designed to fit: Harley Davidson Softail Night Train Fairing There are many different models, factory upgrades, and custom aftermarket parts so some modification may be necessary. …

SKU: 09-1560g

UPC: 754592100265

Shipping: $59.00 (Fixed Shipping Cost)

$329.00

Current Stock: 7

Quantity:

See Full Details Here

Product Details

Designed to fit: Harley Davidson Softail Night Train Fairing

There are many different models, factory upgrades, and custom aftermarket parts so some modification may be necessary. Fairings come designed to accommodate 2 x 5.25" speakers but can accommodate 2 x 6.5" speakers by enlarging the existing holes. Each fairing comes with 2 free windshields, one clear and one tinted.

Note: If you already have Memphis Shades for 35-43mm Clamps MEM 9953, then our fairing will mount to these. If you do not have the Memphis Shades clamps, then we offer fork clamps. Installation requires 4 pieces (2 sets) of the 35-43mm fork clamps.

Note: This fairing is smaller than other fairings that we offer. As a result, the space to accommodate the audio receiver is smaller. This fairing has limited depth. The current cutout is 3 ½” x 5 ½” and will accommodate a receiver up to 3” deep. We recommend digital media receivers such as – TBV22 and Infinity model INFPRV250.

NOTE: Speedometer relocation required if located on handlebars.

Spec

Overall Dimensions:
35.75' W x 12.5 H x 6.5" Deep

Stereo Opening Dimensions:
5 1/2" W x 3 5/8" H

Speaker Opening Dimensions:
4 5/8" Diameter; 3 ’’ Deep

Windshield Height:
5 1/2’’ H
