Vulcan 900 Classic and VN900 LT Motorcycle Batwing Fairing 2006-2018
4 reviews
Write a Review
Write a Reviews
Stealth
Vulcan 900 Classic and VN900 LT Motorcycle Batwing Fairing 2006-2018
A Fiberglass Batwing Fairing Kit for 2006-2018 Kawasaki Vulcan 900 Classic and VN900 LT Motorcycles
(Will NOT fit 900 Custom models)
Note: There are two options for fairing configuration: (…
SKU:
Shipping:
$59.00 (Fixed Shipping Cost)
$329.00
See Full Details Here

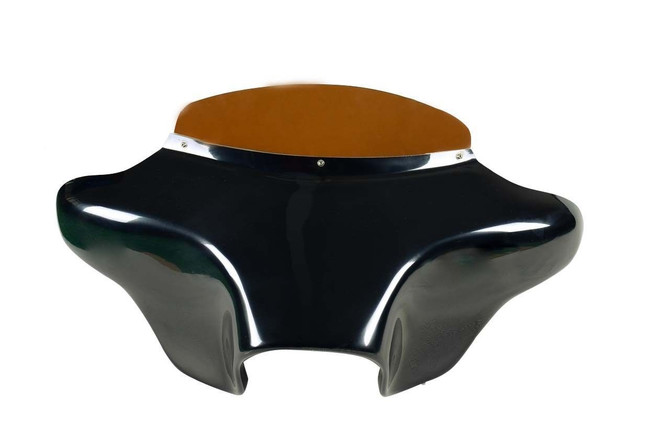

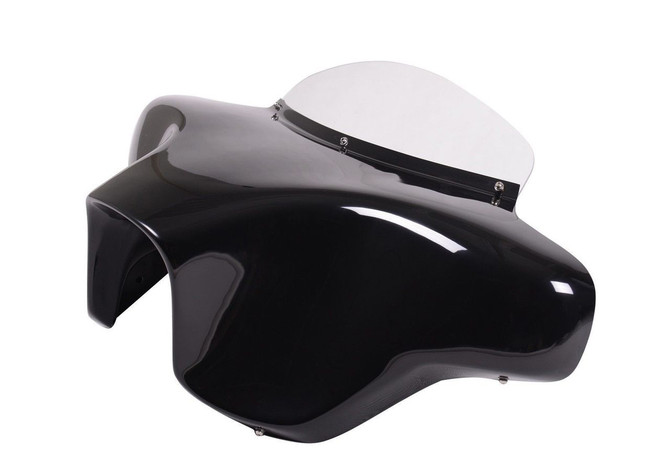

A Fiberglass Batwing Fairing Kit for 2006-2018 Kawasaki Vulcan 900 Classic and VN900 LT Motorcycles

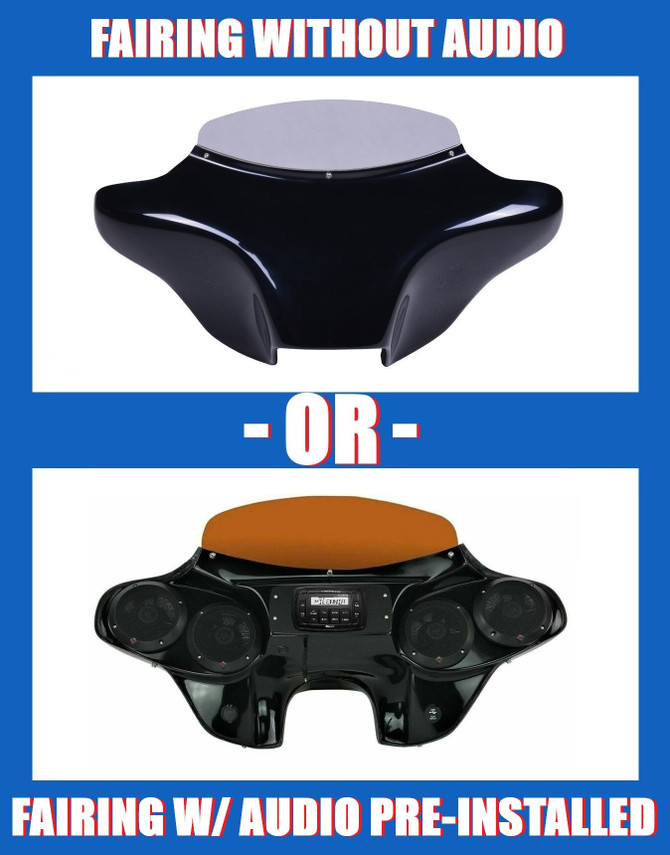

Note: There are two options for fairing configuration: (With and without stereo)
(1) Fairing Without Stereo - Ship next business day

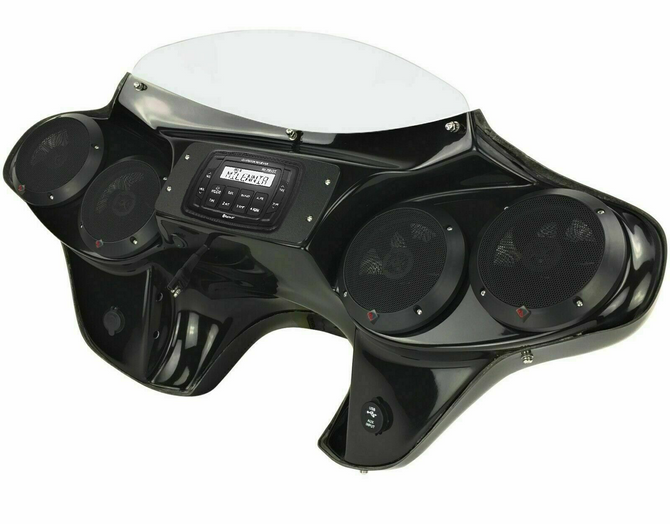

(2) Fairing with Stereo (Rockford Fosgate Speakers and TBV22 Stereo) - builds to Order. Times vary by season
Features:
- Sleek Aerodynamic design
- Fits 2006-2018 Kawasaki VN900 LT
- Fits 2006-2018 Kawasaki Vulcan 900 Classic - Requires OEM Parts# 11054-0787, 11054-0789, and 11054-0791 (not included)

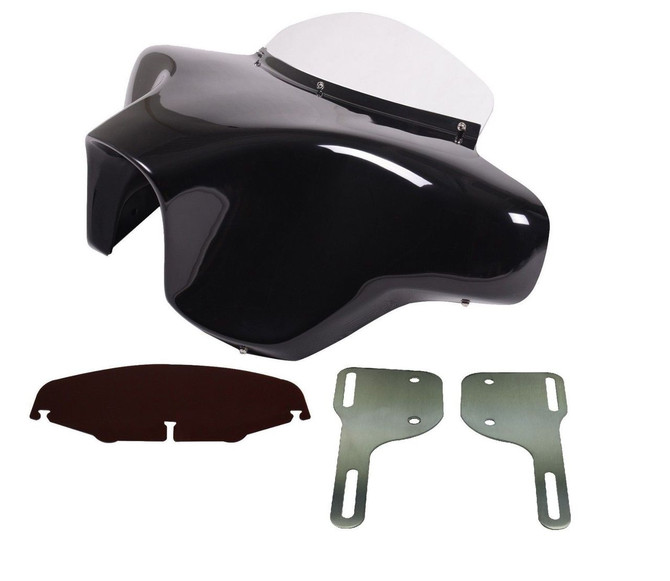

- Both Inner and Outer Pieces Included

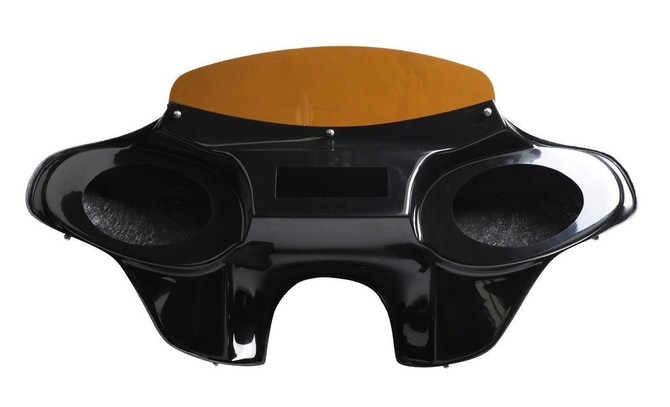

- Accommodates 2 – 6x9” Speakers
- Includes brackets to mount to OEM parts
- Heavy - Duty Construction
- Protective Gelcoat
- similar to compounds used on marine craft and aircraft
- battles ultraviolet degradation
- NOT a primer like the competitor uses
- Paintable
- FREE Windshields Included – 1 clear and 1 tinted
- True Hand Laid Fiberglass (not chopper gun) – lighter and STRONGER than plastic
Your motorcycle must have installed OEM Parts# 11054-0787, 11054-0789, and 11054-0791 (not included)
NOTE: The brackets provided are designed to fit the widest possible range of bikes. Please note that, in some instances, you may be required to drill new bracket mounting holes in the fairing, use washers as shims or even purchase additional aftermarket mounting brackets.
NOTE: (1) Speakers are NOT included. (2) Please note that there are many options for audio and digital media receivers. As a result, we cannot provide a one- size-fits-all receiver cutout in our fairings. You may be required to cut a larger space or add an ABS surround to accommodate your desired audio or digital media receiver. (3) Fairings with uncut speaker holes are not available.

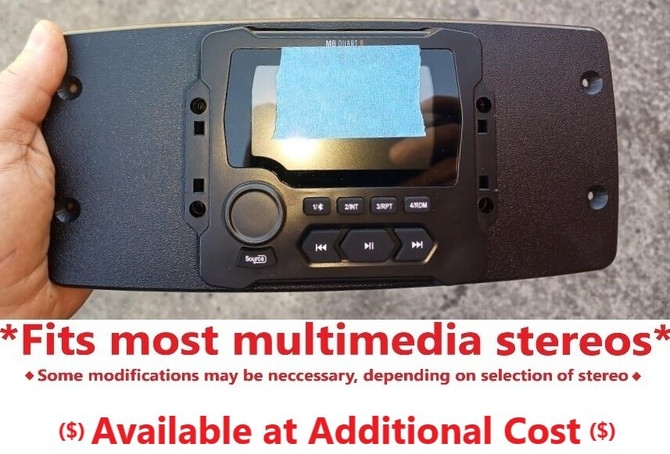

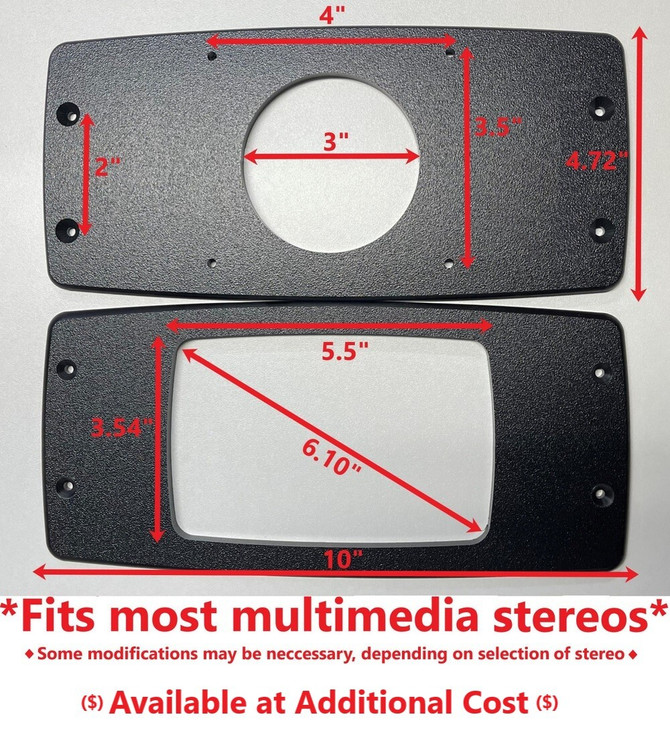

*Note: Multimedia plate add-ons are made to fit most multimedia stereos such as Rockford Fosgate PMX and Infinity PRV. We provide 2 different plates. Depending on the head unit you purchase some modifications may be required. The plate measurements are within the gallery of photos (see image 5).
Specifications
Smooth Front Speaker Opening Dimensions:
2 - 6"x9" Speaker Model:
8 1/2’’ L x 5 3/4’’ H; 3’’ Deep
4 - 5 14" Speaker Model:
4 5/8" Diameter; 2 1/4’’ Deep
Overall Dimensions (without windshield):
39 1/2’’ L x 111/2’’ W x 17” H
Windshield Height:
5 1/2’’ H
Vented Front Speaker Opening Dimensions:
Accepts digital media receiver and not a traditional single DIN head unit
2 - 6"x9" Speaker Model:
5.5’’ L x 8.25’’ H; 3 1/4’’ Deep
2 - 6.5" Speaker Model:
5" Diameter; 3 ¾’’ Deep
Overall Dimensions (without windshield):
39 1/2’’ L x 111/2’’ W x 17” H
Windshield Height:
5 1/2’’ H
Smooth Front Speaker Opening Dimensions:
2 - 6"x9" Speaker Model:
8 1/2’’ L x 5 3/4’’ H; 3’’ Deep
4 - 5 14" Speaker Model:
4 5/8" Diameter; 2 1/4’’ Deep
Overall Dimensions (without windshield):
39 1/2’’ L x 111/2’’ W x 17” H
Windshield Height:
5 1/2’’ H
Vented Front Speaker Opening Dimensions:
Accepts digital media receiver and not a traditional single DIN head unit
2 - 6"x9" Speaker Model:
5.5’’ L x 8.25’’ H; 3 1/4’’ Deep
2 - 6.5" Speaker Model:
5" Diameter; 3 ¾’’ Deep
Overall Dimensions (without windshield):
39 1/2’’ L x 111/2’’ W x 17” H
Windshield Height:
5 1/2’’ H
-
-
Kawasaki vulcan 900 classic
Thus far it has worked great, with great sound. The brackets had to be modified to fit my bike, but only required 2 new holes to be drilled in the OEM brackets to fit correctly. I would recommend that you order before the spring or summer as that is their peak season and may take up to 3 wks to build. However it was well worth the wait!
-
VERY NICE
I love this batwing. Very strong but light weight. Would have given it a 5 star but I had to do a lot of cutting on it. I order the 6x9 cut out but it was nowhere near the size. But I love the fairing.
-
Very happy to find inner outter fairing!
Very happy with the fairing for my bike, fits very well, and looks great on my 09 Kawasaki Vulcan classic.
