Tow Max Heavy Duty Car Tow Dolly 4,900 lb. With Hydraulic Brakes





Calculated at checkout

Current Stock:


See Full Details Here

Product Details

 Our production times vary depending on the time of year. Please reach out to us so we can provide an approximate shipping date. The Tow Max with Hydraulic Brakes is an extremely popular product and we do sell out often. Order now to ensure you get your trailer when you need it.


Local Pick Up Only

Your order will need to be picked up at our Greenville, SC warehouse.
Please contact us for this address


The quality you need at a price you can afford

When you're towing a vehicle, you have to be confident that the car tow dolly is doing its job. In many cases, you can't see the vehicle in tow. Don't rely on blind trust; get an affordable tow dolly with the tow strength, quality and features you need.

Tow Max offers a heavy duty frame with a durable powder coat finish. The 14" heavy duty tires and wheels are covered by steel fenders with DOT approved LED tail lights connected by a pre-wired, snap connect, factory wiring harness.

Your vehicle will ride smoothly, even at highway speeds thanks to the heavy duty spindles and cast hubs. Lashing winches and tire nets are included as are maintenance free Teflon pads.

Tow Max is capable of towing small, medium and large cars, trucks and vans. Simply drive it on, tie it down and hit the road. Even if you can't see your valuable vehicle while towing, you can be confident that Tow Max will ensure a safe and smooth ride.

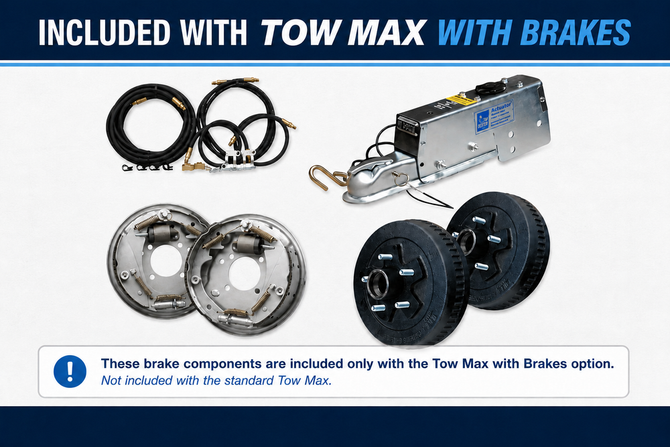

The Tow Max is equipped with one of the highest sought after braking system on the market. The Hydraulic surge brake System makes the car tow dolly stop frequently whenever your tow vehicle stops. How does that work? Easy,the surge brakes work by the given interia absorbtion at time of braking. The interia transfers onto the self-contained actuator, which pushes brake fluid into the drum brakes for
instant braking!


Free Set of Wheel Straps/Nets with Purchase - $49.99 Value


Tow Max Features

  • The Tow MAX Heavy Duty Car Tow Dolly will haul small, medium, or large cars, trucks, and vans
  • Durable Powder Coat Finish
  • We use easy lube hubs, eliminating the need for disassembly of the wheel bearing for greasing
  • Hubs are compatible with Bearing Buddy No. 1980A (not included)
  • Our 205/75-D14 heavy-duty tires and wheels assure a smooth ride at all towing speeds
  • Our fenders are made of steel- We use a factory molded, plug together wiring harness
  • Actual Cargo Capacity - 3,000 lbs.
  • Maximum Gross Weight of Vehicle to be Towed - 4,900 lbs.
  • The Tow MAX Heavy Duty Car Tow Dolly comes with a 1-year factory warranty
  • Tire Pan Width
    •  79 1/2 in. maximum width
    •  43 3/4 in. minimum  width


The Tow Max with Hydraulic Brakes comes with a 1-year factory warranty.

Shipping Information

To best maintain the integrity of the trailer, the Tow Max with Hydraulic Brakes is local pick up in Greenville, SC only.






Tow Max Specifications

  • Overall Dimensions L x W x H (in) - 123 x 102 x 27 1/4
  • Tow Capacity - 3,000 lbs
  • Heavy Duty Frame
  • 2'' Coupler
  • Powder Coat Finish
  • 6,500lb Lashing Winches
  • 12,000lb Rated Tire Nets
  • Dual Safety Chain Set
  • Heavy Duty Spindles & Cast Hubs w/ Easy Lube Hub
  • Sturdy Steel Fenders
  • 14'' Heavy Duty Tires
  • DOT Approved Lighting
  • Pre- Wired Factory Wiring Harness
  • 4-pin Flat Connector
  • 10" Surge Drum Brakes
  • LED Taillights
  • Maintenance Free Teflon Pads for Easy Turning Pan
  • Tire Size - ST205/75 D14
  • Tire Pressure - 65 psi - Cold
  • Empty Weight - 475lb
  • Maximum Load Capacity - 3000lb (Tow Capacity)
  • Hitch Height 17"

Tire Pan Width

  • 79 1/2 in. maximum width
  • 43 3/4 in. minimum width


1-yr Limited Warranty

Note: - To best maintain the integrity of the trailer, the Tow Max Tow Dolly is local pick up only.

Please Contact Us For Our Greenville, SC Pick Up Address.

Questions? Please CALL 864-501-4559
