'85-'08 Harley Hidden Motorcycle Trailer Hitch & Receiver

9 reviews Write a Review
* FREE SHIPPING * 1985-2008 Harley Davidson Models Get the convenience of a removable receiver head with a "hidden" design. The Banner Hitch spreads towing stress over the widest possible area on yo…
SKU: 10-6610
UPC: 754592331621
Availability: In Stock
Shipping: Free Shipping
$129.95
See Full Details Here

* FREE SHIPPING *

1985-2008 Harley Davidson Models

Get the convenience of a removable receiver head with a "hidden" design. The Banner Hitch spreads towing stress over the widest possible area on your bike for maximum strength. Our tension bolt assembly eliminates all movement from the receiver head for a slop-free and noise-free connection.

Also includes 1 7/8 steel ball, steel pin with spring clip, specially designed to protect sensitive motorcycle circuitry. Tongue weight is 60lbs maximum; load rating is 350lbs maximum. Load ratings will be somewhat less for lowered bikes. Lower fender bumper or rear fender V-rail is recommended to makes the lower portion of the hitch. Does not fit 2007 or 2008 CVO Road King Models.

(Note: We recommend that you install the HD-part #91100-94 on the Road Glide, Road King, CVO Electra Glide, CVO Ultra Classic, and the 2003 CVO Road King, as there is a gap between the bottom of the fender and the hitch platform.)

Details

  • Convenience of a removable receiver here with a cleaner "hidden" vertical design
  • Spreads towing stress over the widest possible area on your bike for maximum strength
  • Our tension bolt assembly eliminates all movement from receiver head for slop-free and noise-free connection
  • Includes 1-7/8? steel ball, pin with spring clip
  • Tongue weight: 60lbs (max)
  • Load rating: 350lbs (max)
  • Lower fender V-rail is recommended to mask the lower portion of the hitch

Fits 1985-2008 Harley-Davidson

  • Road King
  • Street Glide
  • Road Glide
  • Ultra Classic
  • Electra Glide
  • and CVO Models
  • Does not fit 2007 or 2008 CVO Road King models

We recommend that you install the HD V-Rail (HD part #91100-94) on the Road Glide, Road King, CVO Electra Glide, CVO Ultra Classic, and the 2003 CVO Road King, as there is a gap between the bottom of the fender and the hitch platform



Warranty

1 yr Warranty

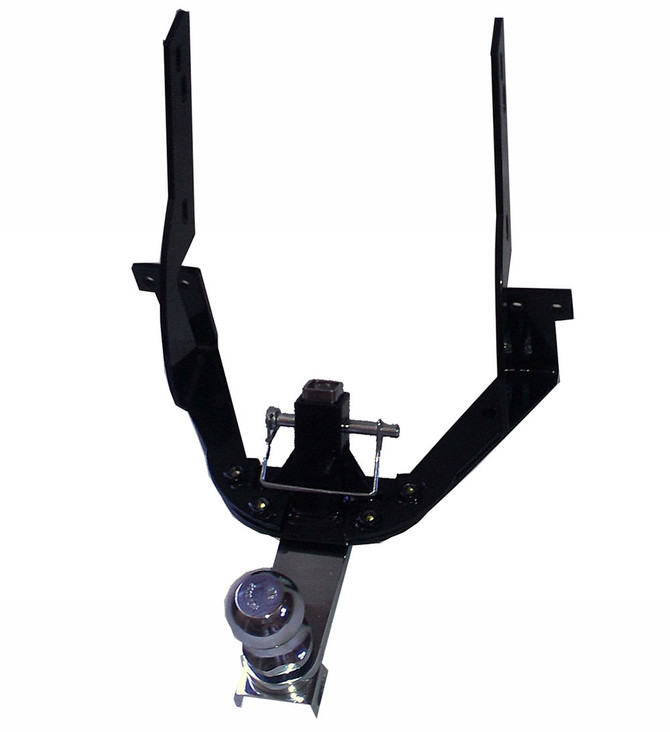

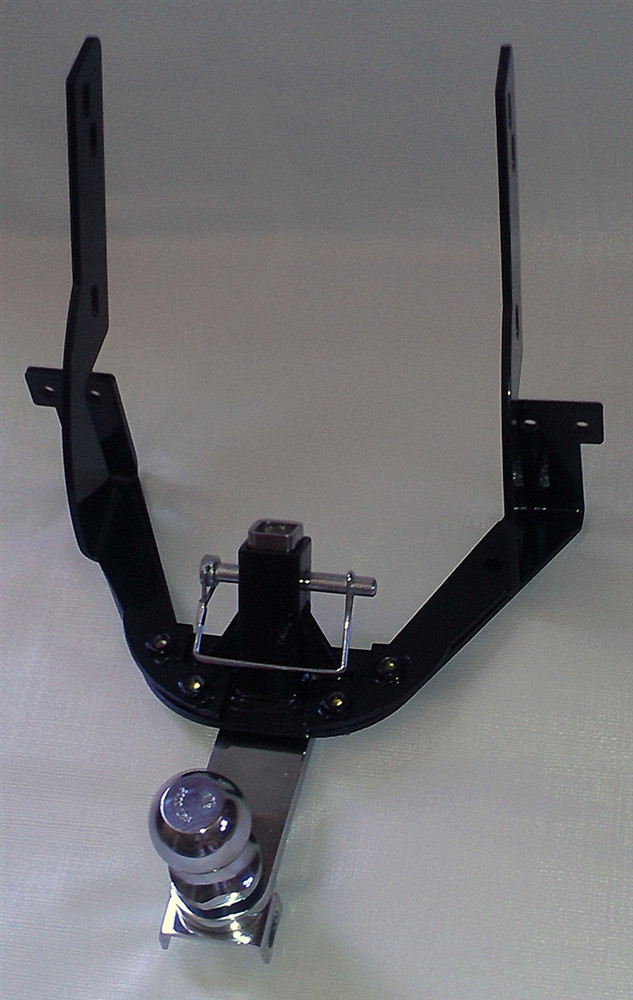

Contents:

  • (1) Receiver Center Section (3/8-16 x 1" GR8HH Bolt & Jam Nut Installed)
  • (2) Support Struts
  • 3/8" Lock Pin
  • Chrome Hitch Head w/ QMC 1 7/8"
  • Steel Ball

Hardware:

  • (8) 5/16-18 x 3/4 inch GR8HH Bolt
  • (4) 5/16-18 x 1 1/4 inchGR8HH Bolt
  • (20) 1/4 inch Flat Washer
  • (4) 5/16-18 Nylock Nut
  • (2) 1/4 - 20 x 1 inch GR8HH Bolt
  • (2) 1/4- 20 Nylock Nut
  • Looks great but no instructions with mine made it a hassle 4

    Posted by Jsson S on Jun 28th 2021

    Looks good and concealed but no instructions made it tie consuming. Lower bracket is simple bud I assumed it went behind Saddlebag support brackets so I took all that apart then to realize side support holes didn’t matchup. Shoulda just took the 4 saddlebag support nuts off and slides right on. Also don’t work with try light on SG but I assumed that so put in a cheap Amazon tri light and cut the housing so hitch bracket fit and now I still have a light in the fender extension. It’ll prob burn out cause no infer waterproof but I’d rather that and fill the tri light holes in extension. Other than that would been simple install

  • Great product 5

    Posted by Greg on Nov 12th 2020

    This hitch mounts up easy to your bike. Completely concealed when the recover is not attached. Vendor will not confirm the fit, so a little risk involved.

  • Very nice product 5

    Posted by Unknown on Jun 22nd 2020

    This hitch fit perfectly. Hides well when not in use and installed very well. Instructions were nonexistent, but was fairly self explanatory. Good job.

  • Real good 5

    Posted by Unknown on May 4th 2020

    Installed easy. Solid.

  • Will this for 03 soft tail heritage classic? 5

    Posted by Unknown on Mar 7th 2020

    Will this fit 03 flstci

  • Easy to install 4

    Posted by Brad on Jun 28th 2019

    Would have given it 5 stars but hitch kit did not come with all of the peices. (Missing all of the washers) but when I figured out what I had it was easy to install.

  • GREAT HITCH 4

    Posted by Unknown on Apr 9th 2018

    This is a good quality hitch and fits like a glove. I'd give it 5 stars but the mounting hardware wasn't complete. No bolts to bolt it to the fender rails and wrong size bolts (1/4" instead of 5/16") to bolt the supports to the center section. Nothing a quick trip to the bolt store didn't fix!

  • Good hitch (once you get it installed) 4

    Posted by Christopher Cleveland on May 2nd 2016

    Instructions could be much clearer, also the bolts suggest for the fender once the strut has been added are not the right thread. We used the muffler hanger original bolts for the struts and that solved that problem. Hole alignment was a bit frustrating but with a extra pair of hands it was managed. Once installed and removing the ball hitch yea it is basically invisible which is great.

  • Hitch 5

    Posted by Unknown on May 6th 2015

    Stays perfectly hidden when receiver is removed.
