Stealth

Suzuki Intruder VL 1500 LC

4 reviews Write a Review
A Fiberglass Batwing Fairing Kit for 1998-2004 Suzuki Intruder VL 1500 LC Motorcyles Note: There are two options for fairing configuration: (With and without stereo) (1) Fairing Without Stereo - Shi…
SKU:
UPC: 901123439992
Shipping: $59.00 (Fixed Shipping Cost)
$329.00
See Full Details Here

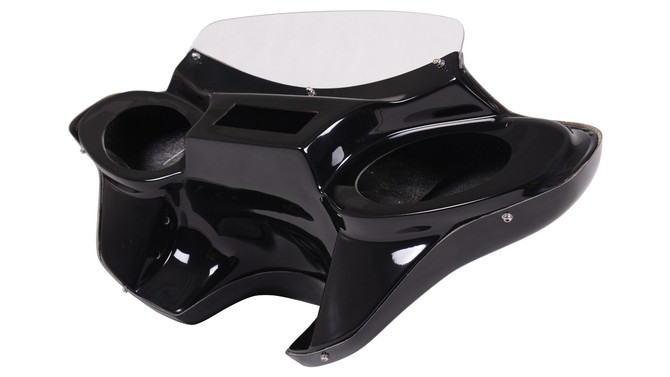

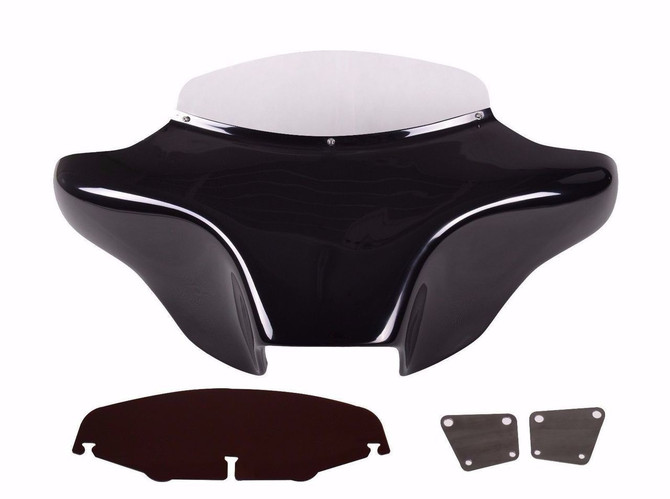

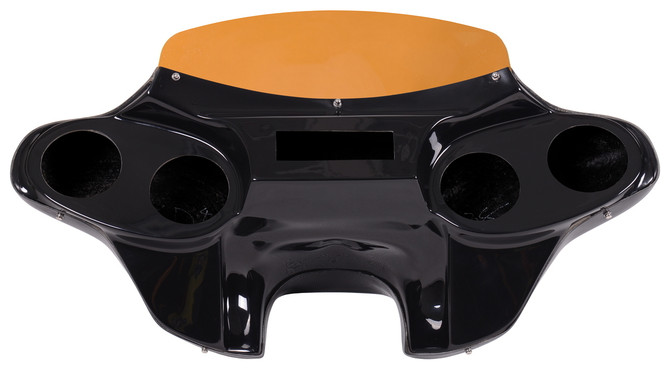

A Fiberglass Batwing Fairing Kit for 1998-2004 Suzuki Intruder VL 1500 LC Motorcyles

Note: There are two options for fairing configuration: (With and without stereo)

(1) Fairing Without Stereo - Ship next business day

(2) Fairing with Stereo (Rockford Fosgate Speakers and TBV22 Stereo) - builds to Order. Times vary by season

Features:

  • Sleek Aerodynamic design
  • Fits 1998 to 2004 Suzuki Intruder VL 1500 LC
  • OEM windscreen mounts required
  • Both Inner and Outer Pieces Included
  • Accommodates:Heavy - Duty Construction 2 - 6" x 9" Round Speakers or 4 - 5" Round Speakers

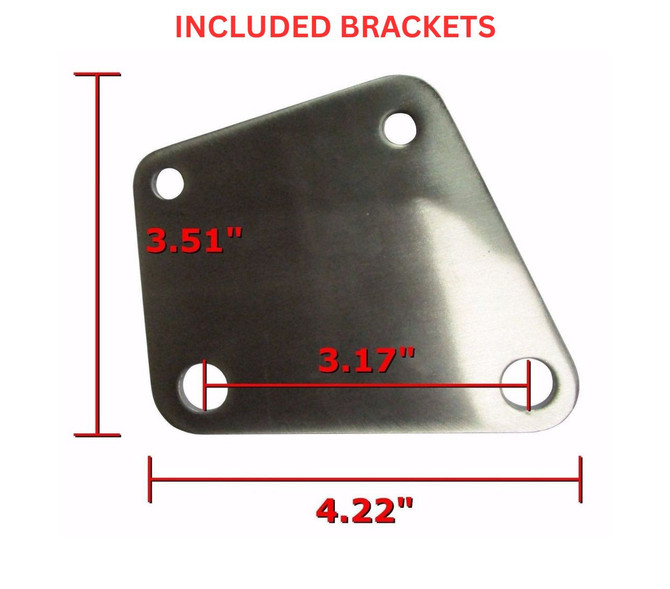

  • Includes brackets to mount to OEM parts
  • Protective Gelcoat
  • Similar to compounds used on marine craft and aircraft
  • Battles ultraviolet degradation
  • NOT a primer like the competitor uses
  • Paintable
  • FREE Windshields Included – 1 clear and 1 tinted
  • True Hand Laid Fiberglass (not chopper gun) – lighter and STRONGER than plastic



Note:

Suzuki OEM Hardware Required - Part # 99950-72010-002 and 99950-72010-003

You may also use part numbers 990A0-70005-025 and 990A0-70005-026, as these supersede the original part numbers.

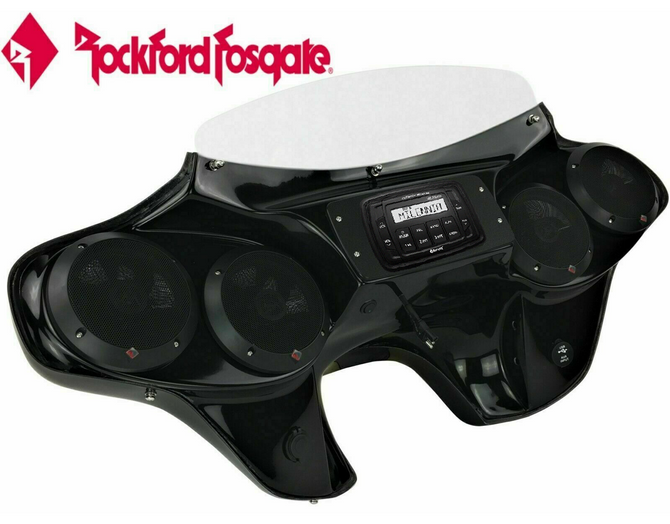

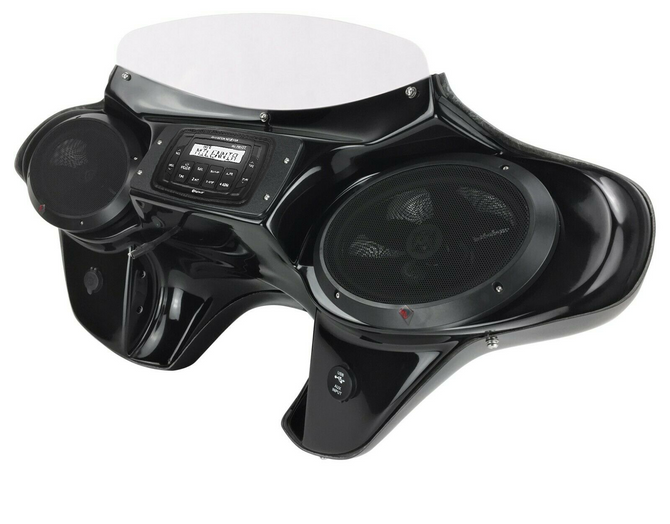

(2) Fairing with Stereo (Rockford Fosgate Speakers and TBV22 Stereo) - builds to Order. Times vary by season

*Note: Multimedia plate add-ons are made to fit most multimedia stereos such as Rockford Fosgate PMX and Infinity PRV. We provide 2 different plates. Depending on the head unit you purchase some modifications may be required. The plate measurements are within the gallery of photos (see image 5).

Speaker Specifications:

2 - 6"x9" Speaker Model:
8 1/2’’ L x 5 3/4’’ H 3 1/8’’ Deep

4 - 5 14" Speaker Model:
4 1/2" Diameter 2 1/4’’ Deep

Overall Dimensions (without windshield):
39 1/2” L x 11 1/2” W x 17” H

Weight (without windshield):
8 lbs. 3.9 oz.

Windshield Height:
5 1/2’’H

Windshield Colors:
One each Clear AND Tinted

Material:
Hand Laid Fiberglass

Finish:
Gelcoat

Color:
Black

Note:

Suzuki OEM Hardware Required - Part # 99950-72010-002 and 99950-72010-003

You may also use part numbers 990A0-70005-025 and 990A0-70005-026, as these supersede the original part numbers.

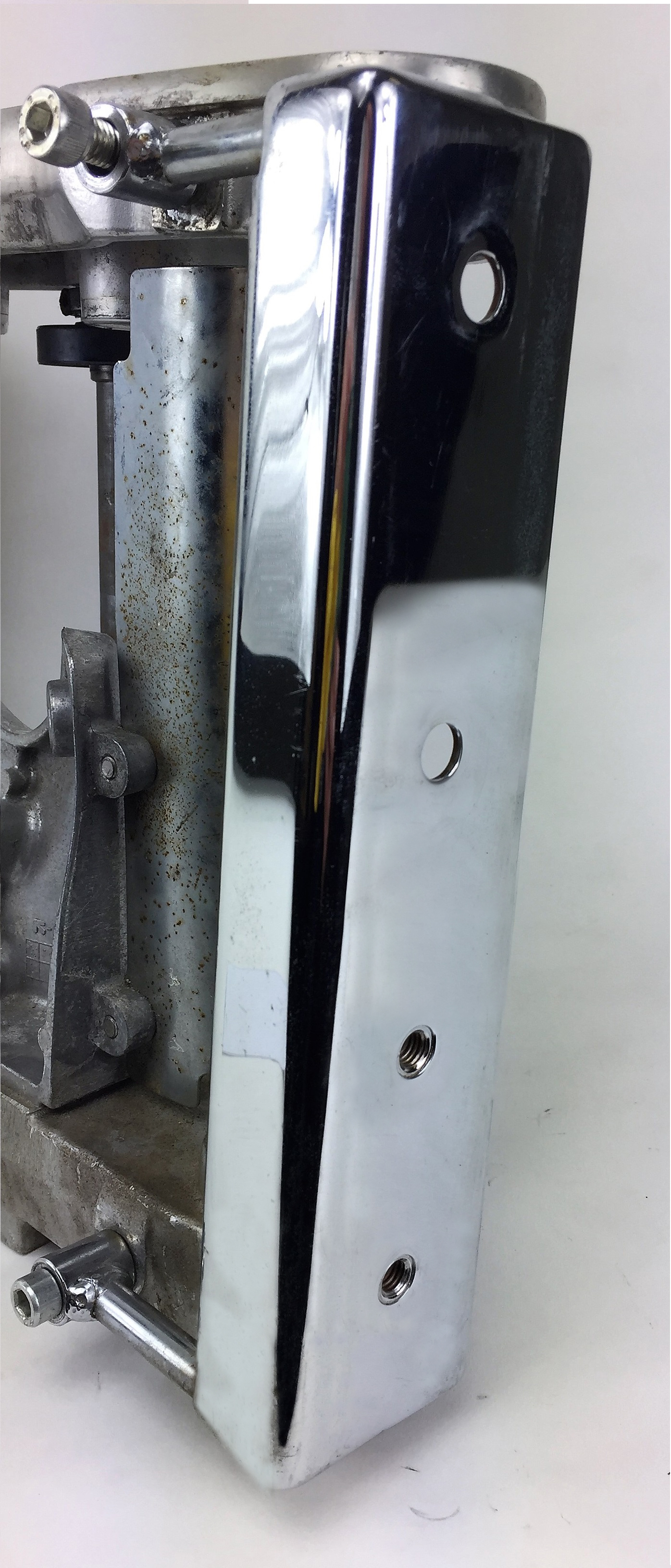

Suzuki Intruder Batwing Fairing Hardware


  • Absolutely incredible 4

    Posted by Spenser R. Boucher on Mar 25th 2021

    Just got my fairing a few days ago. Was told 2-3 weeks was the build time, so I figured it would be at my door within 3-4 weeks. I had it at my door 8 days after ordering! It was very nicely packaged, came with three books that explained all installation / usage / etc. I went with the 4-5” speakers and they’re LOUD. With a lot of base as well! I am SUPER happy with the purchase! The only upsetting part and the reason I gave 4 instead of 5 stars, is my mounting hardware did not line up with the pre drilled holes on the fairing even though I have the OEM hardware that the manufacturer of the stealth wing said I need. The top hole bolted in fine, but the bottom hole was roughly a quarter of an inch too far off and I couldn’t move it closer over due to the bottom of the fairing coming in contact with the hardware. That’s okay though, I just drilled two new holes to secure the bottom of the plate. No big deal. Everything else was literally perfect if not better than. This was EXACTLY what I was looking for to put on my bike. THANK YOU USATRAILERSTORE! If I had another intruder I’d buy again!

  • I am very pleased with the faring 5

    Posted by Patrick D. on Apr 12th 2019

    I am very pleased with the faring I purchased. Bolted right up with no problems.

  • 6x9 was not really 6x9 4

    Posted by Unknown on Jun 26th 2018

    I had to make the holes bigger to fit my speaker and the mounting hard ware was useless i had to make brackets otherwise i like the fairing

  • Batwing fairing 5

    Posted by Unknown on Oct 12th 2017

    Fit was great nice fairing was surprised at how well was built
